Every successful stud welding operation depends on more than the machine and the stud. Arc welding accessories determine whether your setup produces consistent, inspection-ready welds on every cycle or creates rework, downtime, and failed certification checks. Many welding teams invest in quality studs and a reliable machine but overlook the accessories that connect, guide, and protect every weld. This guide covers every accessory category in a drawn arc stud welding setup, what each one does, and how to select the right components for your specific application.
Why Arc Welding Accessories Affect Weld Quality Directly
Many welders treat accessories as secondary purchases to reorder only when something breaks. However, worn or mismatched accessories introduce variability into the weld cycle that even a correctly calibrated machine cannot compensate for.
A worn chuck allows stud movement during the arc phase. As a result, the stud plunges off-center and creates an incomplete fusion zone. A damaged cable connector increases resistance in the welding circuit, which reduces arc energy and produces undersized flash rings. A ferrule that does not match the stud diameter fails to contain the weld pool correctly and leaves an irregular weld profile that fails visual inspection.
Furthermore, using accessories designed for one process on a different application for example, using CD accessories on an arc welding setup produces inconsistent results that operators often misattribute to machine settings or operator error. Selecting the correct arc welding accessories for your specific application removes these variables before the first weld.
Complete Arc Welding Accessories Reference Guide
The table below covers every primary accessory in a standard drawn arc stud welding setup, its function, and what to check when selecting or replacing it.
| Accessory | Function | What to Check |
| Ceramic ferrule | Contains weld pool, shapes flash ring, protects arc zone | Must match stud diameter exactly wrong size causes incomplete welds |
| Adjustable chuck | Holds stud in gun during welding cycle | Must match stud shank diameter worn chucks cause stud movement |
| Ferrule grip / foot | Positions ferrule against base material | Check for cracks or deformation that prevents correct ferrule seating |
| Cable connector | Connects welding cable to gun and power supply | Inspect for corrosion or loose fit increases circuit resistance if damaged |
| Cable lug | Secures ground cable to base material | Must maintain solid contact poor ground causes arc instability |
| Spark shield | Protects operator from spatter during the arc phase | Replace when shield shows heat damage or deformation |
| Collet insert | Centers stud inside chuck for precise positioning | Check for wear off-center studs produce asymmetric welds |
| Tube adapter | Adapts gun to different stud shank profiles | Must match stud geometry exactly for correct chuck engagement |
| B-stop | Controls stud protrusion depth in the gun | Set correctly per stud diameter wrong depth affects plunge distance |
| Ferrule plate | Supports ferrule on flat surface applications | Use when base material geometry requires additional ferrule stability |

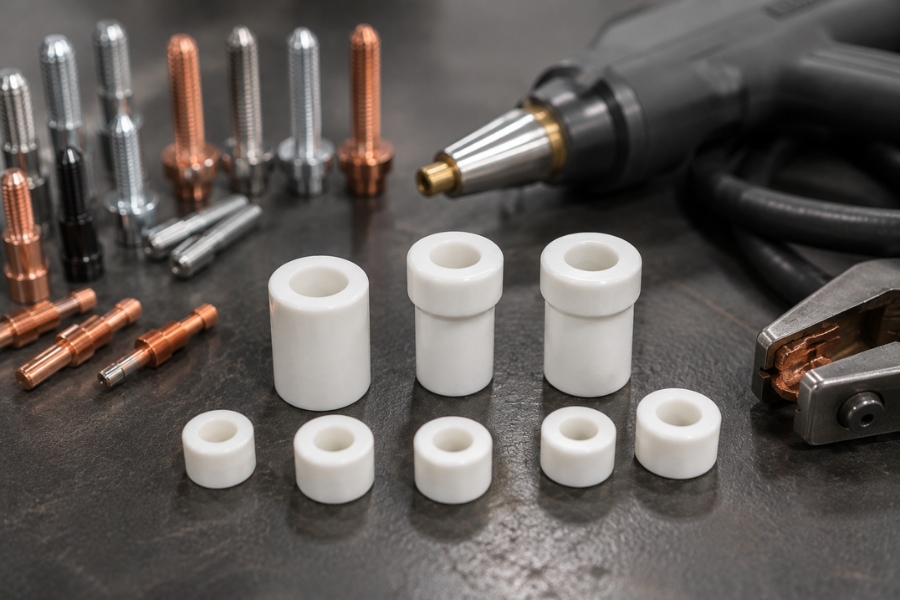

Ceramic Ferrules The Most Critical Accessory in the Setup
Of all arc welding accessories, the ceramic ferrule carries the most direct influence on weld quality. It contains the molten metal at the weld zone during the arc phase, shapes the flash ring that inspectors evaluate after the weld, and concentrates heat at the connection point.
Ferrule selection depends entirely on stud diameter and application type. Standard flat ferrules suit most down-hand structural applications. Thru-deck ferrules handle composite construction where studs weld through steel decking before the concrete pour. Reduced-base ferrules fit studs with unthreaded sections at the tip. Collar ferrules work with low-profile or short-application studs.
Using the wrong ferrule type on any of these applications produces an undersized or irregular flash ring, traps spatter inside the weld zone, and creates a connection that fails AWS visual inspection criteria. Therefore, always verify ferrule type and diameter against the stud specification before starting a production run.
Chucks and Collets Maintaining Stud Positioning Accuracy
The chuck holds each stud in the welding gun during the lift and arc phases of the drawn arc process. Collet inserts center the stud within the chuck to ensure consistent positioning on every cycle.
As chucks wear from repeated use, the grip on the stud shank becomes inconsistent. This causes slight lateral movement during the arc phase that shifts the plunge point off-center. Over time, this produces welds with asymmetric flash rings and reduced cross-sectional bond area, a problem that becomes critical on structural applications where weld strength is certified and inspected.
Replace chucks when visible wear appears on the gripping surfaces or when operators notice inconsistent flash ring profiles across a production run. For operations running high-volume programs, upgrading to professional-grade stud welders with consistent lift and plunge control reduces chuck wear significantly and improves weld repeatability across long production runs. Similarly, inspect collet inserts at regular intervals and replace them before wear causes positioning errors.

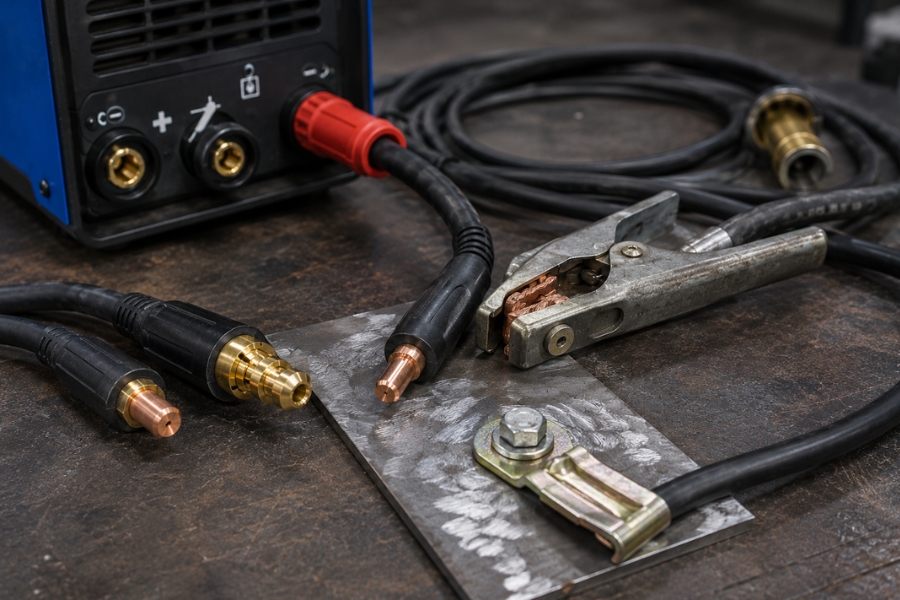

Cable Connectors and Ground Connections
The welding circuit carries high-amperage current from the power supply through the cable, through the gun, and into the weld zone. Every connection point in that circuit must maintain low resistance for the arc energy to reach the stud correctly.
Corroded or loose cable connectors reduce arc energy at the weld zone. Operators often compensate by increasing machine power settings, which produces excessive heat input and oversized flash rings rather than correcting the underlying connection problem. Consequently, inspect cable connectors at the start of every shift and replace them at the first sign of corrosion or mechanical damage.
Ground cable lugs deserve the same attention. A poor ground connection creates arc instability that no power setting adjustment can fix. Keep ground contact surfaces clean and maintain firm mechanical connection to the base material throughout every welding session.
Source Arc Welding Accessories from Northland Fastening Systems
Northland Fastening Systems stocks the complete range of drawn arc welding accessories ceramic ferrules in all standard types and diameters, adjustable chucks, ferrule grips, cable connectors, cable lugs, spark shields, collet inserts, tube adapters, B-stops, and ferrule plates all meeting AWS compliance standards for structural and industrial applications.
Our team carries a complete range of equipment for large and small programs, giving your operation the flexibility to scale up without a major capital commitment. Our team works directly with fabrication teams, project managers, and purchasing departments to make sure every accessory order matches the equipment and stud specifications your operation uses.
Call us at 651-730-7770 to speak with a product specialist and get the right accessories for your setup today.
Frequently Asked Questions
Q1: How often should arc welding accessories like chucks and ferrules be replaced?
Replace ferrules after every weld, they are single-use components. Replace chucks when visible wear affects stud grip or when flash ring profiles become inconsistent across a production run.
Q2: Can I use the same ferrule for different stud diameters on the same setup?
No. Each ferrule must match the stud diameter exactly. Using an incorrect ferrule size prevents proper weld pool containment and produces flash ring profiles that fail AWS visual inspection requirements.
Q3: What causes arc instability during drawn arc stud welding operations?
Arc instability most commonly results from poor ground cable connections, corroded cable connectors, or worn collet inserts that allow stud movement during the arc phase of the weld cycle.
