Full Thread ARC Weld Stud

Full Thread Studs are used in all types of applications. They can be welded to a flat surface, or to the inside or outside of an angle.

Length – is listed before weld. Stud diameters 1/2″ and below will be approx. 1/8″ shorter after welding. 5/8″- 7/8″ will be approx. 3/16″ shorter after welding. 1″ Diameter studs and above will be approx. 1/4″ shorter after weld. Made to order lengths available upon request.

Material – Low carbon steel, ASTM A29 1010-1020. TT Studs are also available in weldable stainless steel. Type 302 is the most commonly used. Other grades of stainless steel (except Type 303) are avaiable when it required.

Consult your NFS representative for other available lengths

Full Threaded Stud



Clear
Request quote
Part Number: N/A Categories: ,

Description

Stud Specifications

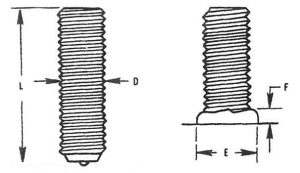

Stud Diameter (D) Minimum Length (L) Fillet Dimension
Diameter (E) Height (F)
10-24 25/32 9/32 3/32
1/4-20 25/32 12/64 7/64
5/16-18 25/32 7/16 7/64
3/8-16 25/32 1/2 1/8
7/16-14 25/32 37/64 9/64
1/2-13 13/16 11/16 5/32
5/8-11 31/32 51/64 3/16
3/4-10 1 15/64 15/16 1/4
7/8-9 1 1/2 1 3/32 5/16
1-8 1 17/32 1 15/64 3/8

To order, please specify: Material, Thread Size and Length

Example:

  • Arc, Mild Steel, Full Thread, 1/4-20 x 1 1/8
  • Part Number:ARC MS FT 006 07



Step 1: Specify Material

Stud Style Material Description Part Number Prefix
Full Thread Mild Steel ARC MS FT*
Stainless Steel ARC SS FT

Step 2: Specify Thread Size

Thread Size Item Number
1/4-20 006*
5/16-18 007
3/8 -16 008
1/2-13 009
5/8-11 010
3/4-10 011
7/8-9 012
1-8 013

Step 3: Specify Length

Stud Length Item Number
3/4 04
7.8 05
1 06
1-1/8 07*
1-1/4 08
1-3/8 09
1-1/2 10
1-5/8 11
1-3/4 12
1-7/8 13
2 14
2-1/8 15
2-1/4 16
2-3/8 17
2-1/2 18

Special sizes available upon request

Mechanical Property Requirements
Tensile Strength 61,000 psi minimum
Yield Strength 49,000 psi minimum
Elongation (% in 2 in.) 17% minimum
Elongation (% in 5x dia.) 14% minimum
Reduction of Area 50% minimum
